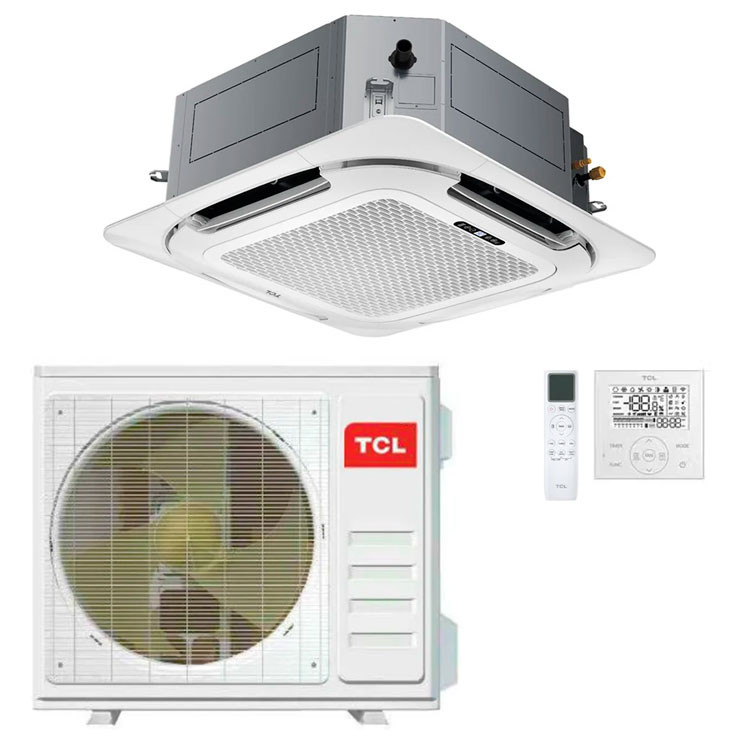

TCL Light Commercial AC

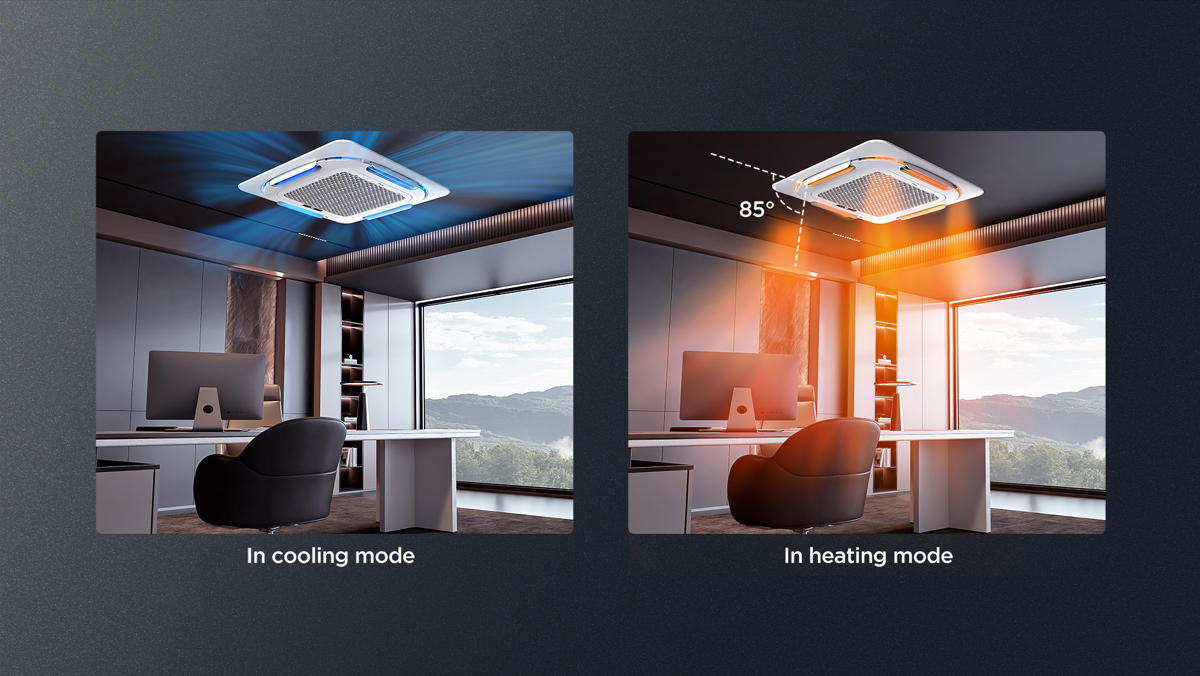

Smart Wind

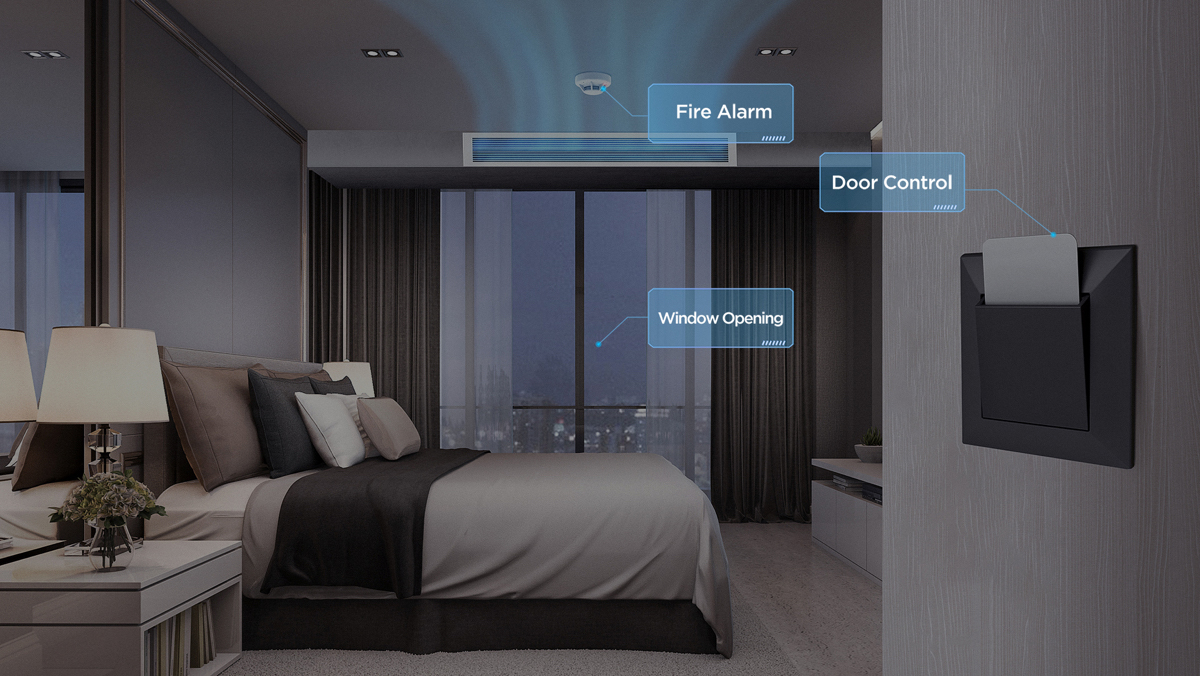

Hotel Mode
The AC can be turned on/off through door or window open or shut, or the fire alarm system for emergency control.
*Optional function

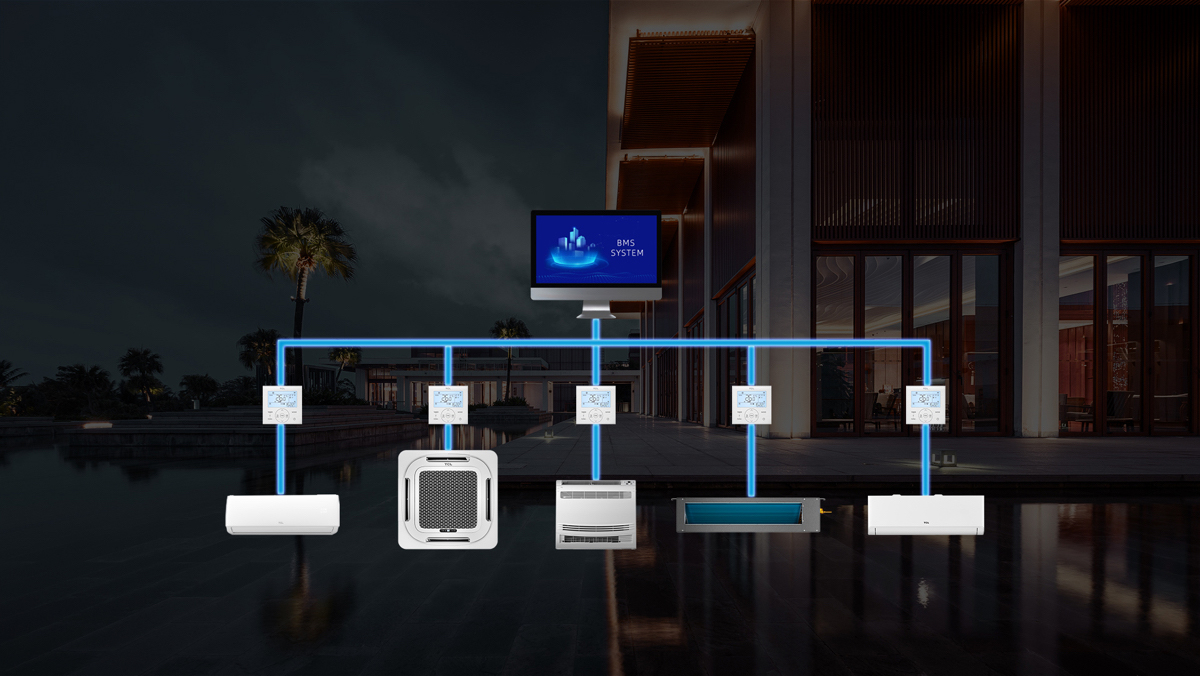

Compliant to BMS System & Airzone
It is compliant to Building Management System and Airzone for more convenient monitoring and control.
*Optional function
SPECIFICATIONS
PanelMBQR-FC(360°)
Power supply sideOutdoor
IDU Power Supply (V~,Hz,Ph)220-240V/50Hz/1P
Capacity – Cooling (Btu/h)24000(7500~25500)
Capacity – Cooling (W)7030(2200~7500)
Capacity – Heating (Btu/h)26900(7900~28500)
Capacity – Heating (W)7900(2320~8350)
Capacity – Pdesignc (W)7030
Capacity – Pdesignh average (W)6000
Capacity – Declare capacity(-10℃) (W)5450
Capacity – Back up heating capacity(-10℃) (W)550
Electric Data(T1)- Rated Cooling Power Input (W)2110(730~3300)
Electric Data(T1)- Rated Heating Power Input (W)2260(765~3100)
Electric Data(T1)- Rated Cooling Current (A)9.5(3.5~15.0)
Electric Data(T1)- Rated Heating Current (A)10.3(3.7~14.2)
Annual energy consumption – Cooling (kwh/a)402
Annual energy consumption – Average (kwh/a)2075
Performance(T1)- EER (W/W)3.33
Performance(T1)- SEER (W/W)6.2
Performance(T1)- Energy ClassA++
Performance(T1)- COP (W/W)3.49
Performance(T1)- SCOP (W/W)4
Performance(T1)- Energy ClassA+
Indoor Fan Fotor – Output Power (W)60
Indoor Fan Fotor – Speed (Hi/Mi/Lo) (r/min)590/500/430
Indoor Unit – Indoor Air Flow(Hi/Mi/Lo) (m³/h)1450
Indoor Unit – Indoor sound power(S/H/M/L/Mute) (dB(A))59/56/52/49/47
Indoor Unit – Indoor sound power(Standard rating conditions) (dB(A))56
Indoor Unit – Indoor sound pressure(S/H/M/L/Mute) (dB(A))49/46/42/39/37
Indoor Unit – Indoor sound pressure(Standard rating conditions) (dB(A))46
Indoor Unit – Net Dimension(W*D*H) (mm)840×840×245
Indoor Unit – Packing Dimension(W*D*H) (mm)920*920*270
Indoor Unit – Net Weight (kg)24
Indoor Unit – Gross Weight (kg)28
Panel – Net Dimension (W*D*H) (mm)950x950x45
Panel – Packing Dimension (W*D*H) (mm)1055x1055x90
Panel – Net weight (kg)6
Panel – Gross weight (kg)9
Operation Temperature Range (℃)16-31

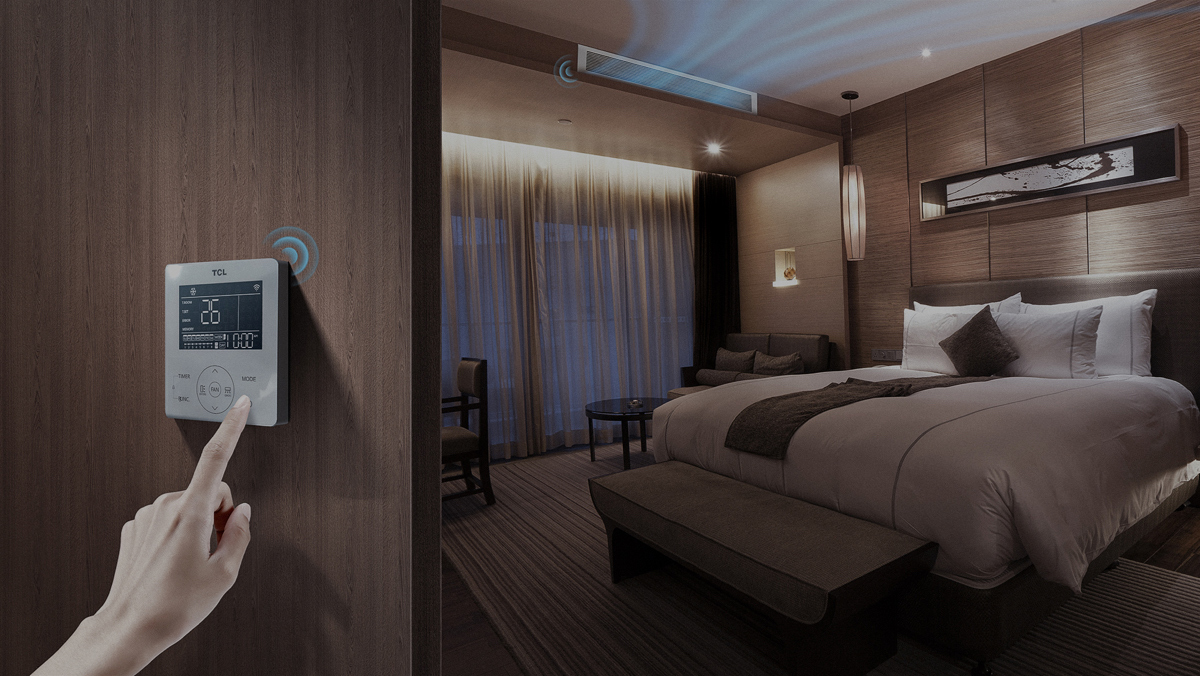

Control typeremote controllerOptional Wired controller
